New

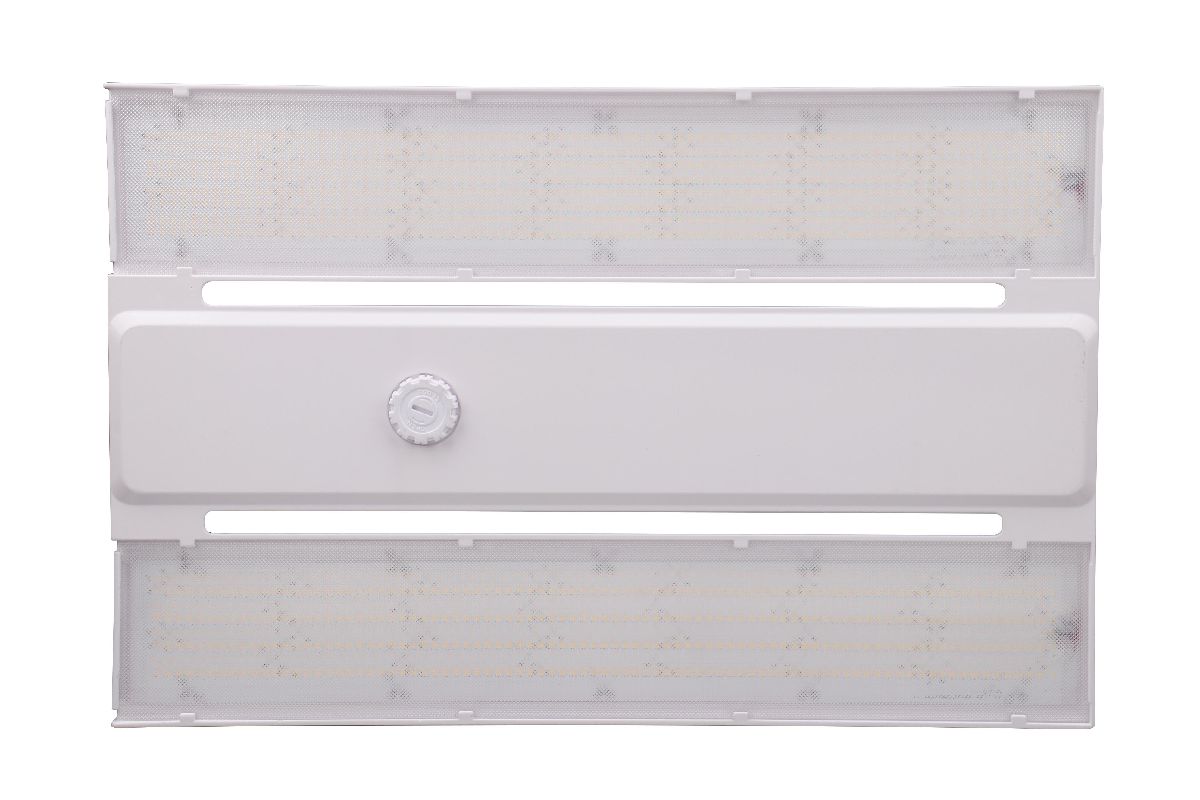

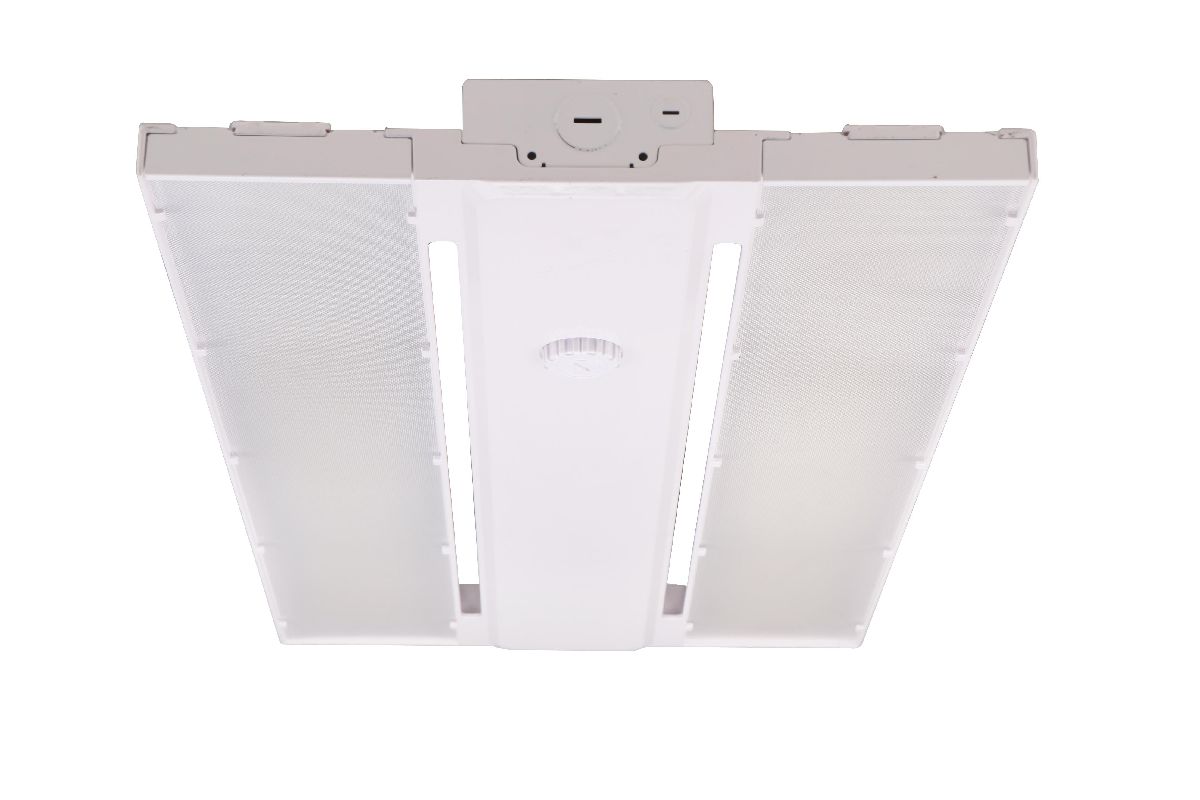

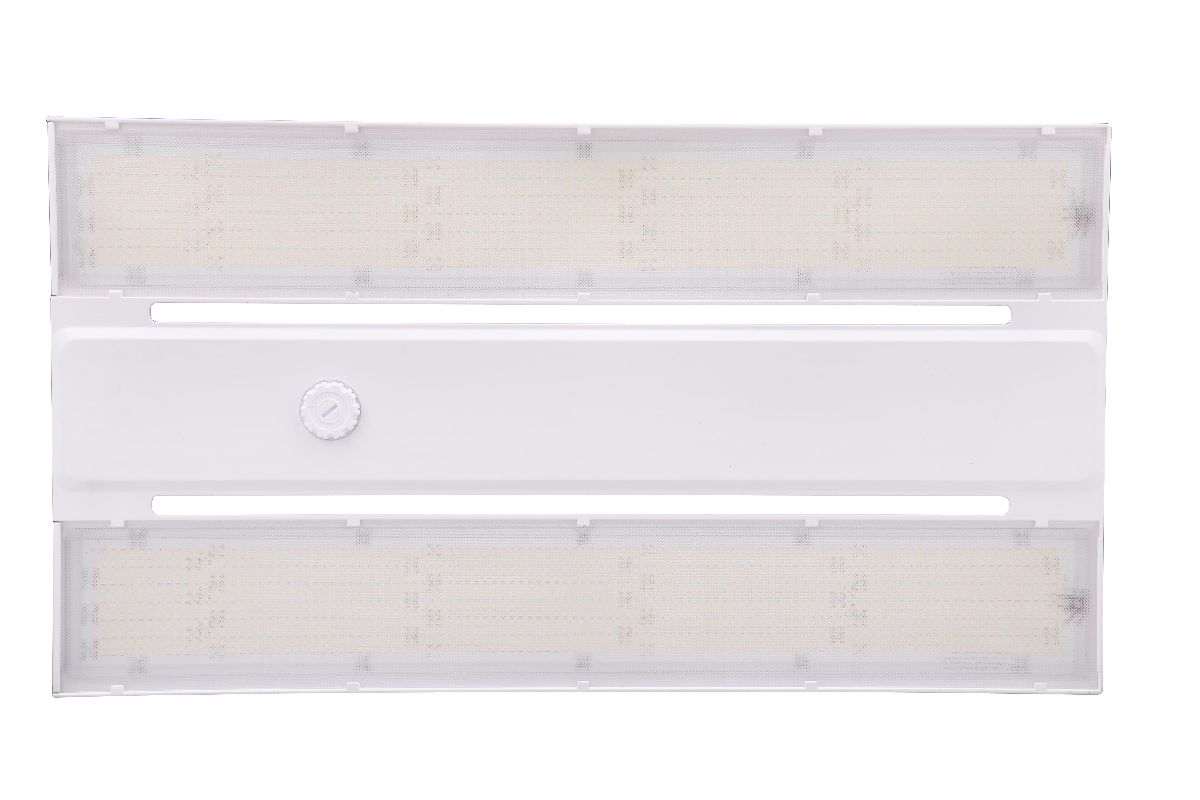

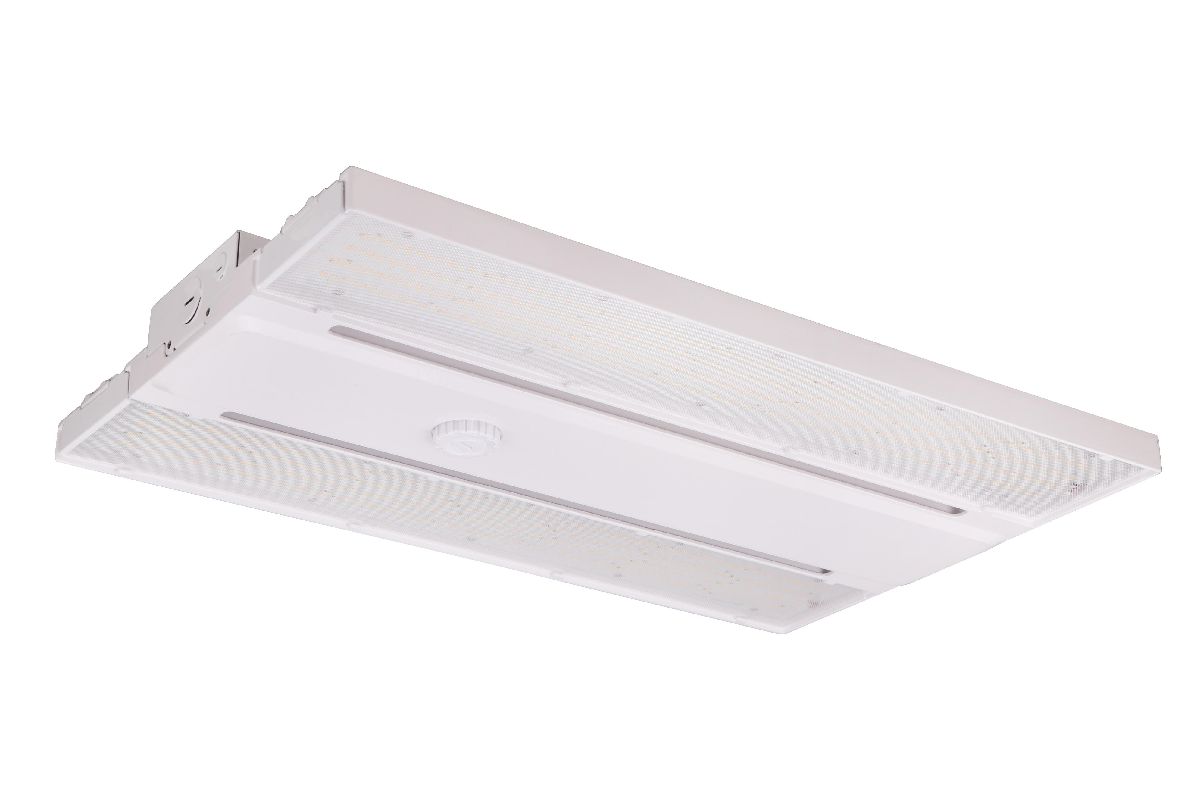

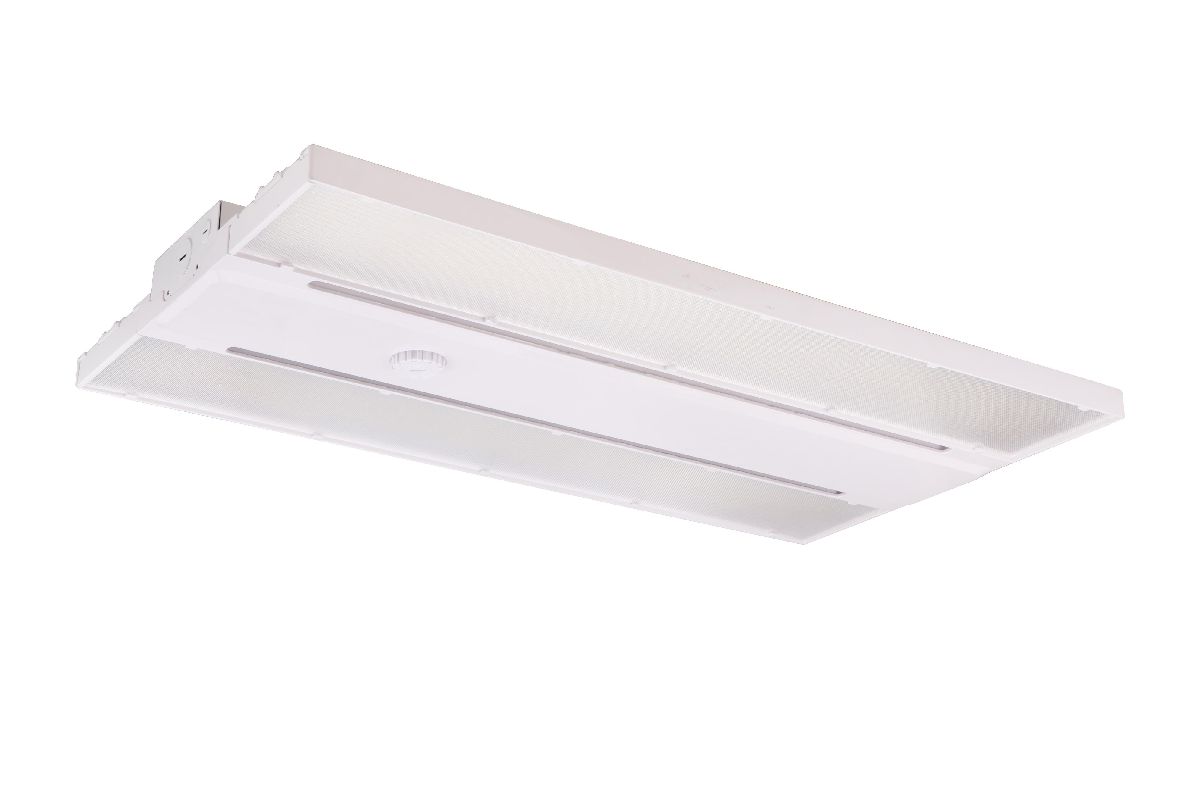

Albeo® PHB

The PHB linear high bay offers maximum project flexibility with ready-to-ship stock options and sensor accessories as well as factory integrated options including Daintree controls.

Features & Benefits

  • Ideal for warehouses and industrial applications
  • Field Selectable Lumen and CCT technologies maximize inventory versatility and flexibility
  • A universal voltage (120-347V) driver with 0-10V dimming to 10% provides great light output control
  • Medium lens standard on stock SKU’s with optional factory installed Narrow, Medium, or Wide distributions in made-to-order configurations
  • Field installable PIR sensor available on stock configurations. Factory integrated Daintree solutions available on made-to-order configurations
  • Excellent thermal management in a compact fixture provides a wide ambient temperature application range: -40°C to +50 °C
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
1X: 14.2" L x 11" W x 2" H, 2X: 23.1" L x 12.6" W x 2" H
Voltage Offering
120-347 V
Lumen Range
16,000 - 36,000lm
CCT Offering
3500 K, 4000 K, 5000 K
CRI Offering
80
Mounting Options
Cable, Surface, Pendant
Wattage Range
108 - 255 W
Efficacy Range
150 - 161 LPW
Color Offering
White
Optics & Distributions
Narrow, Medium, Wide
Controls & Sensors
0-10V Dimming, Integral Sensor, Daintree Integral Sensor, Daintree Wireless Enabled
Certifications
UL, cUL, FCC
Ratings
Damp, IK08 (Lens), IK10 (Housing)
Lumen Maintenance Rating
L70 @ 100,000 hours
Warranty
5 Year Limited warranty

Product Documents

PHB Stock Specification Sheet
2599 KB
2026-03-18
PHB1A-MTO Specification Sheet
9124 KB
2026-03-18

Brochures / Catalogs

Albeo PHB Sell Sheet
1052 KB
2026-03-23
Albeo Industrial Sell Sheet
1153 KB
2026-03-18

IES

Albeo PHB IES Files
75 KB
2026-03-18

Technical Documents

Warranties

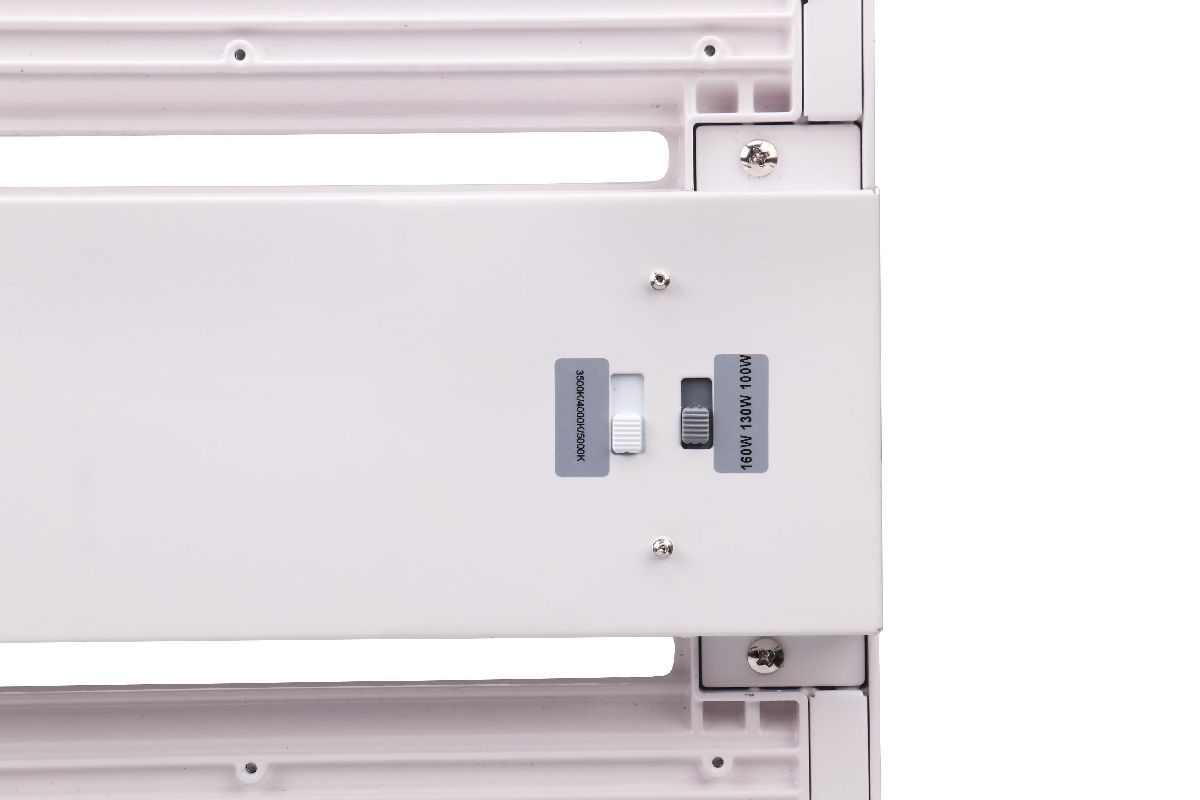

Field-Selectable Options

Adjustable color temperature provide flexible solutions to adapt to any lighting design and can be adjusted on the fly, even after in-field installation.

Intelligent Controls

All PHB fixtures come ready for a field-installable sensor. No need to double your SKU count or plan ahead for sensors - with the PHB's sensor-ready design you can quickly and easily pop in a sensor to capture additional energy savings on any job.
