New

Albeo® PRC

The PRC high bay with selectable lumen, CCT and optics simplifies inventory and adapts to diverse applications including wet location, IP65, NEMA 4X, and NSF.
Selectable_Optics 5_Yr_Warranty_Icon Wet_Rated_Icon Title_24_Compliant_Icon Selectable_Lumens_Icon Selectable_CCT_Warm_Icon RoHS_Icon NSF_Icon IP_Rated_Icon DLC_Standard_Icon DLC_Premium_Icon Dimmable_Icon cULus_Icon

Features & Benefits

  • Reliable high bay solutions designed to perform in tough conditions
  • Featuring selectable lumen, CCT and optical distribution – by flipping a switch

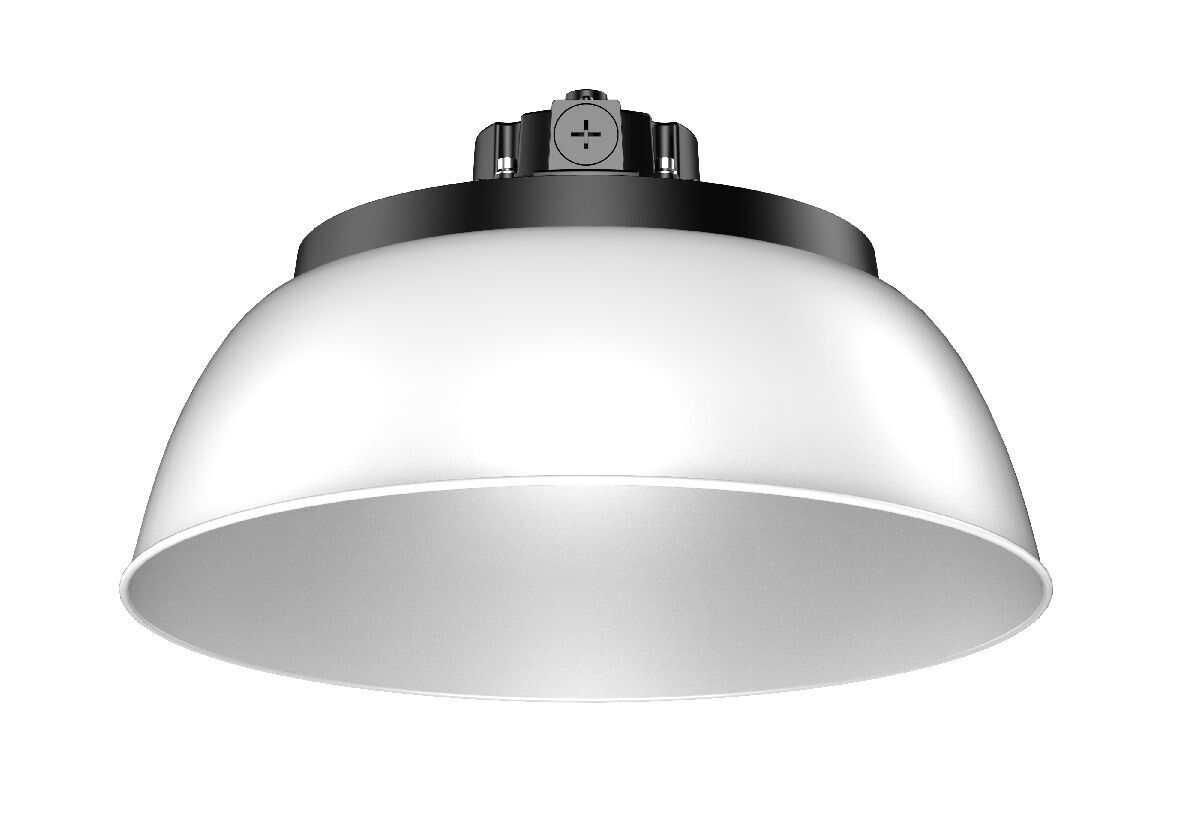

  • Customizable reflector options for superior glare control and refined aesthetics
  • Plug-and-play occupancy sensor

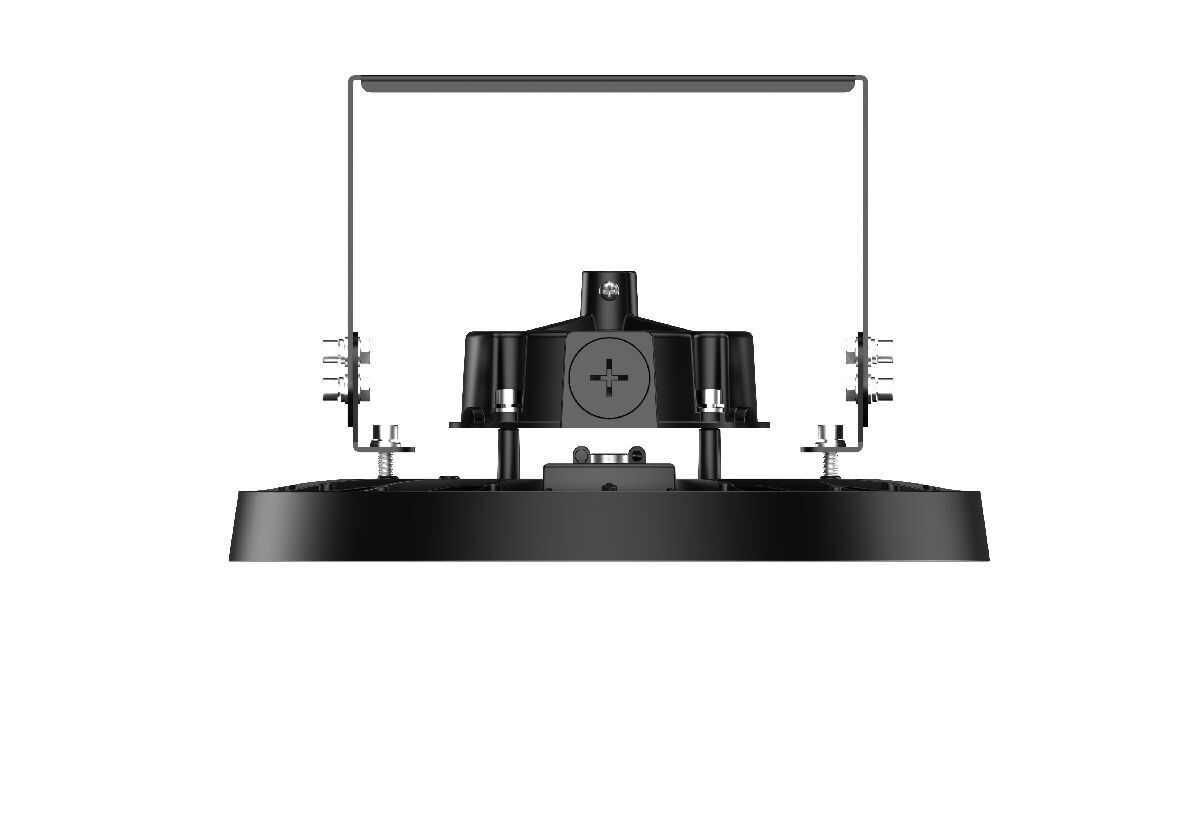

  • Versatile mounting configurations to suit most installation requirements
  • Helps lower maintenance and operational costs through robust design and performance
  • Suitable for challenging environments including wet locations and NSF-rated spaces
  • Driver design life +50,000hrs at 50 ˚C
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
Round
Voltage Offering
120-347 V
Lumen Range
15,000 - 38,000 lmlm
CCT Offering
3500 K, 4000 K, 5000 K, Field Selectable K
CRI Offering
80
Mounting Options
Cable/Suspended Mount, Surface Mount, Wall Mount, Snap Hook and Ring
Wattage Range
100 - 240 W
Efficacy Range
Hasta 160 LPW LPW
Color Offering
Black, White
Optics & Distributions
Selectable 100° / 80° / 60°
Controls & Sensors
0-10V Dimming, Integral Sensor
Certifications
cULus, DLC Premium, Title 24, FCC
Ratings
Wet, RoHS, NSF, IP65, IK07, NEMA 4X, IK10
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L70 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Brochures / Catalogs

IES

Design / BIM Files

Lighting-Current-Highbay-PRC
1104 KB
2023-09-05

Technical Documents

Warranties

IP Rated for Tough Environments

PRC is able to withstand moisture, dust and airborne contaminants with its IP65 rating. Maintain IP65 protection even with the use of field-installable sensors.

Intelligent Controls

All PRC fixtures come ready for a field-installable sensor. No need to double your SKU count or plan ahead for sensors - with the PRCs sensor-ready design you can quickly and easily pop in a sensor to capture additional energy savings on any job.
