Evolve® ERNC

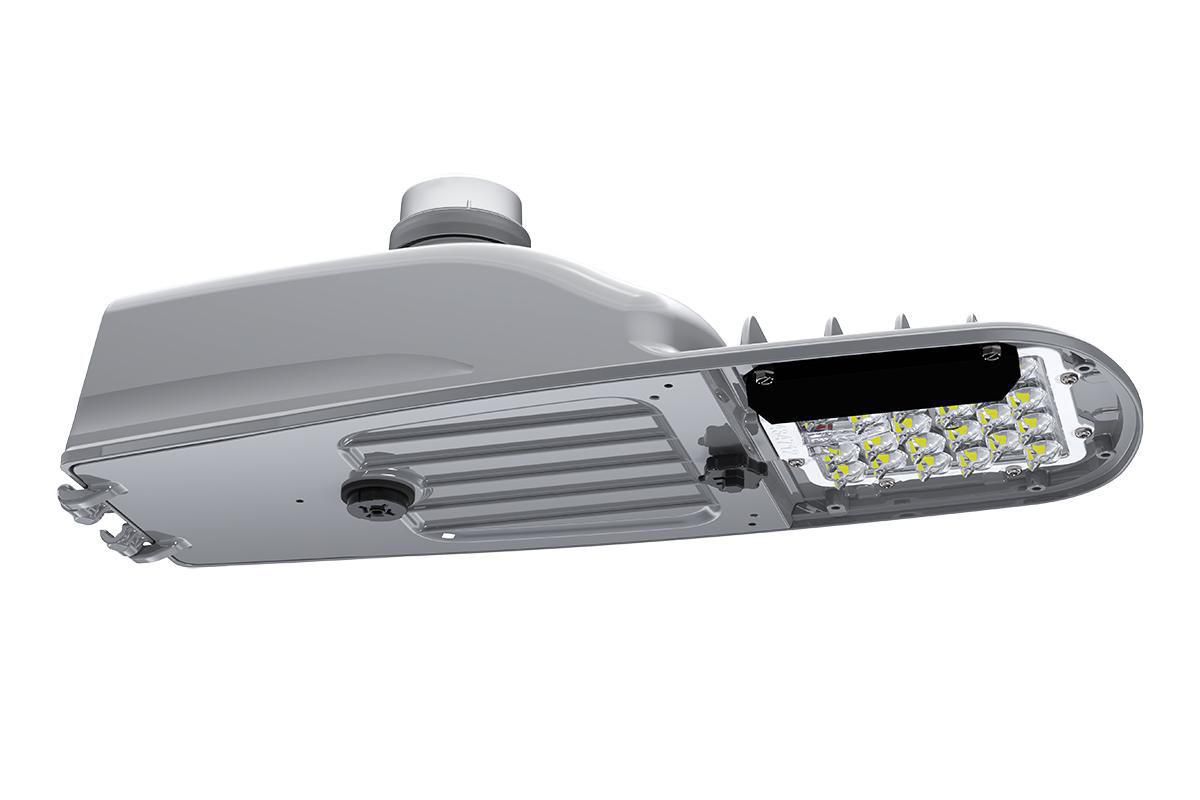

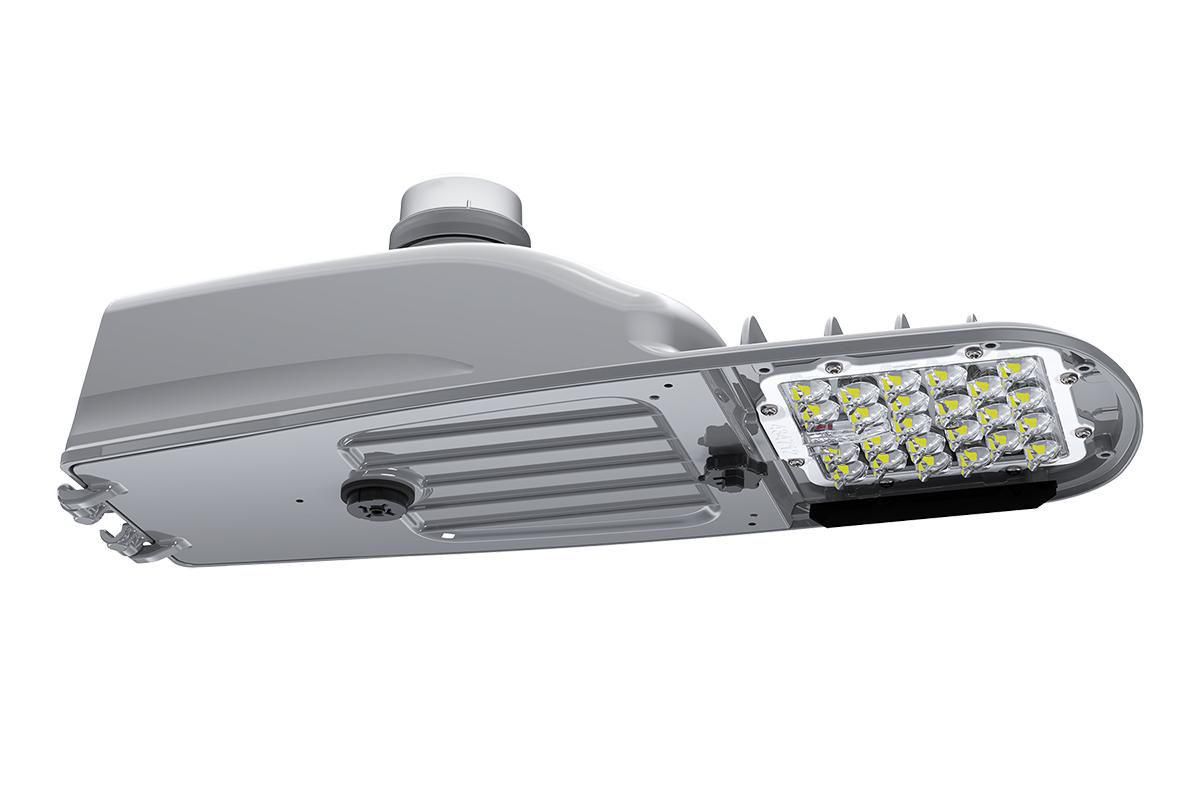

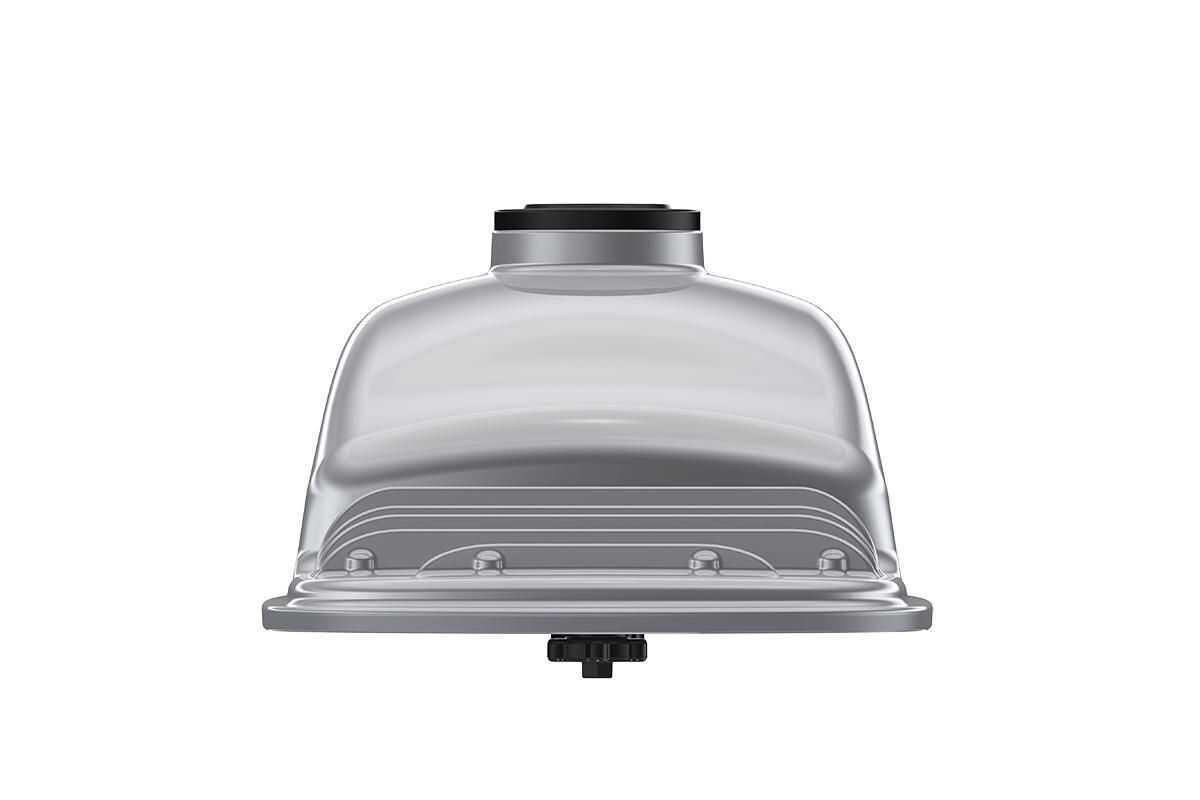

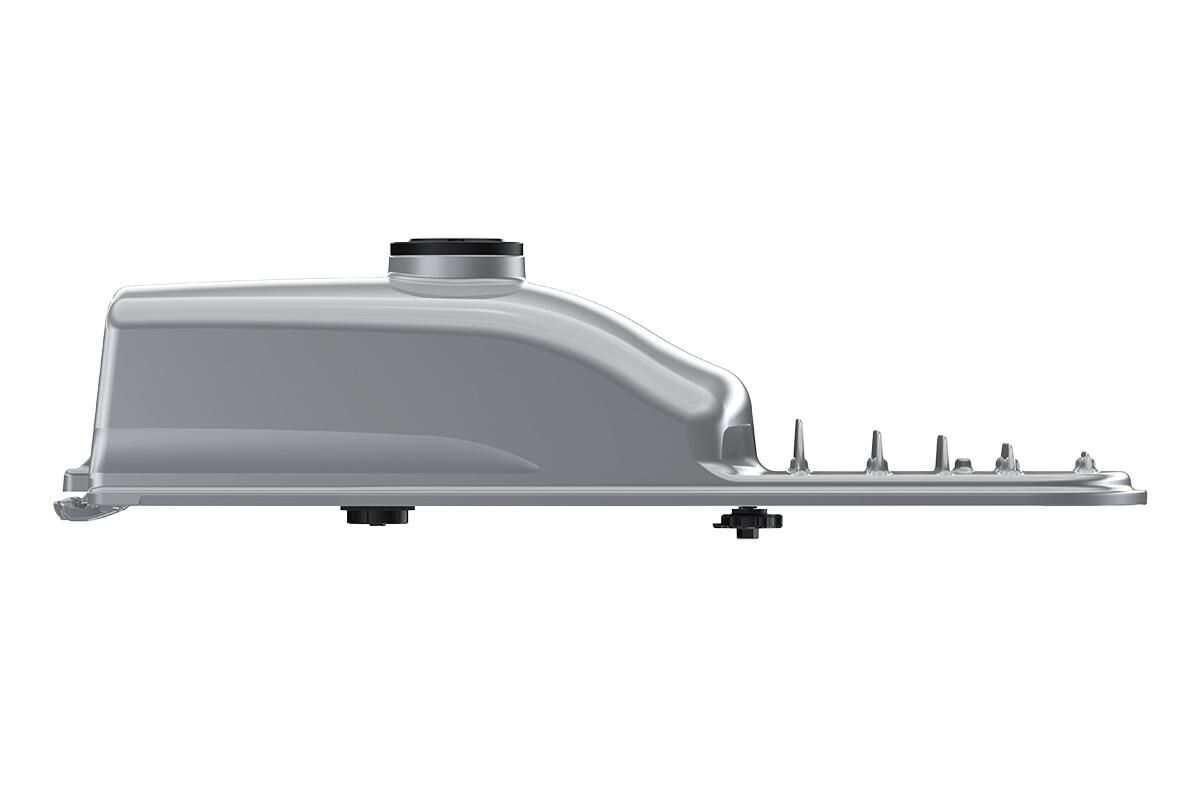

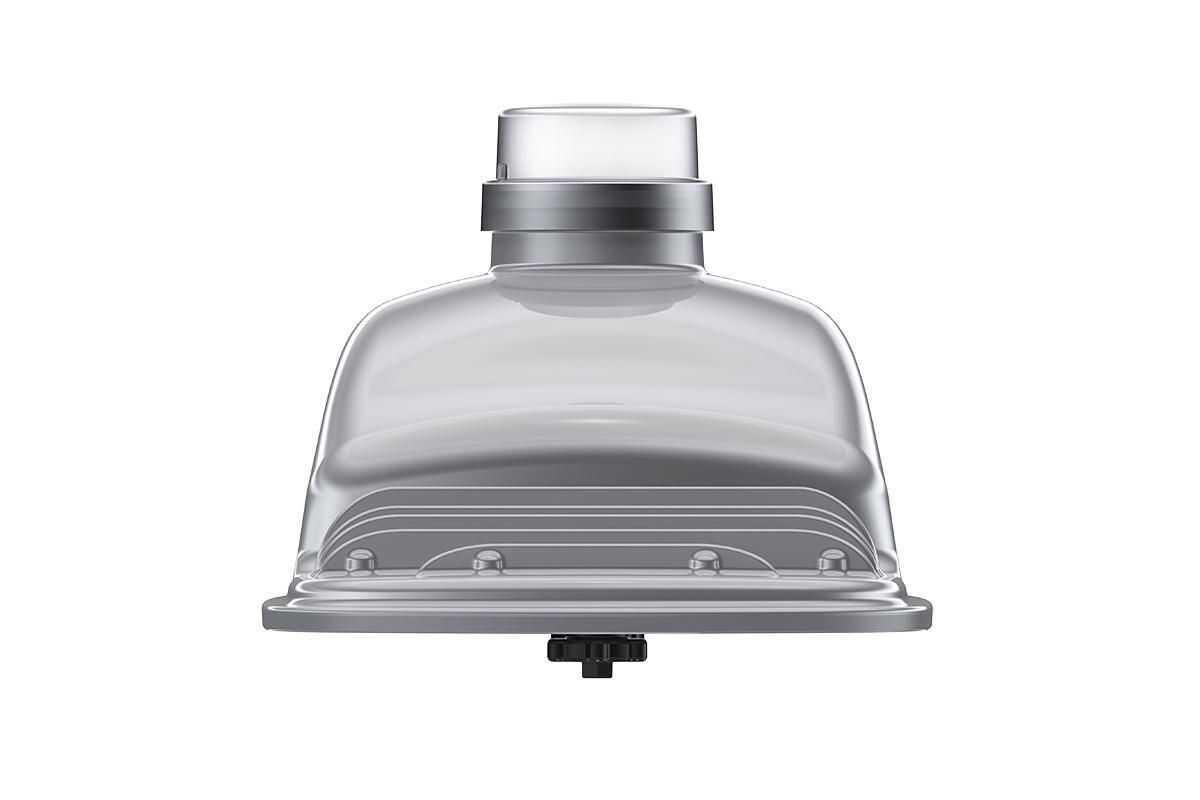

The Evolve® ERNC NexERA LED roadway luminaire provides energy efficiency in a rugged, easy to install, lightweightfixture. New refractive optics provide high-efficacy with application-optimized photometry. The ERNC is available with legacy NEMA 7 Pin socket and/or Zhaga socket for easy integration with asset management devices and sensors.
BABA-icon TAA_Compliant_Icon BAA_Compliant_Icon

Features & Benefits

  • The Evolve® ERNC NexERA LED energy efficiency roadway luminaire, rugged, easy to install light-weight fixture.
  • New LED refractive optics provide high-efficacy application-optimized photometry.
  • Type II, Type III, Type IV and Type V distributions offered at 2700K, 3000K and 4000K CCT.
  • BABA compliant configurations available. Please contact factory to verify if specific configuration is compliant
Where To Buy
SPEC SHEET

Specifications

Voltage Offering
120 - 277 V V, 347 - 480 V V
Lumen Range
2,600 - 13,000lm
CCT Offering
2700 K, 3000 K, 4000 K
CRI Offering
70
Mounting Options
Adjustable for 1.25 to 2.0 in. nominal mounting pipe
Wattage Range
18 - 48 W
Efficacy Range
160 - 173 LPW
Color Offering
Gray, Black, Dark Bronze, Coastal Finish Optional
Optics & Distributions
Type II, Type III, Type IV, Type V
Controls & Sensors
0-10V Dimming, Zhaga Book 18 Sensor Compatible, 7-pin PE Receptacle, LightGrid+™ Compatible, PE available (option), DALI D4i (option)
Ratings
BABA, BAA, TAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L97 @ 50,000 horas
Warranty
5 year limited warranty, 10 year optional warranty

Product Documents

ERNC Spec sheet
1462 KB
2025-02-18

Brochures / Catalogs

ERNC Brochure
7592 KB
2024-08-29

IES

Technical Documents

ERNM Instruction Sheet
10497 KB
2025-07-21

Custom Engineered Refractive Optics

Refractive optics provide increased lumens per watt(LPW), optimal glare performance and uniformity.

Designed and Assembled in The USA

The entire Current Roadway portfolio is designed and assembled by our industry leading team in our state of the art manufacturing center in Hendersonville, NC.

LightGrid+™ Compatible

Current's Cobrahead portfolio is compatible with LightGrid+™. LightGrid+™ allows municipalities and transportation departments the ability to remotely monitor energy consumption, detect failures, dim fixtures remotely and achieve real time energy metering.
