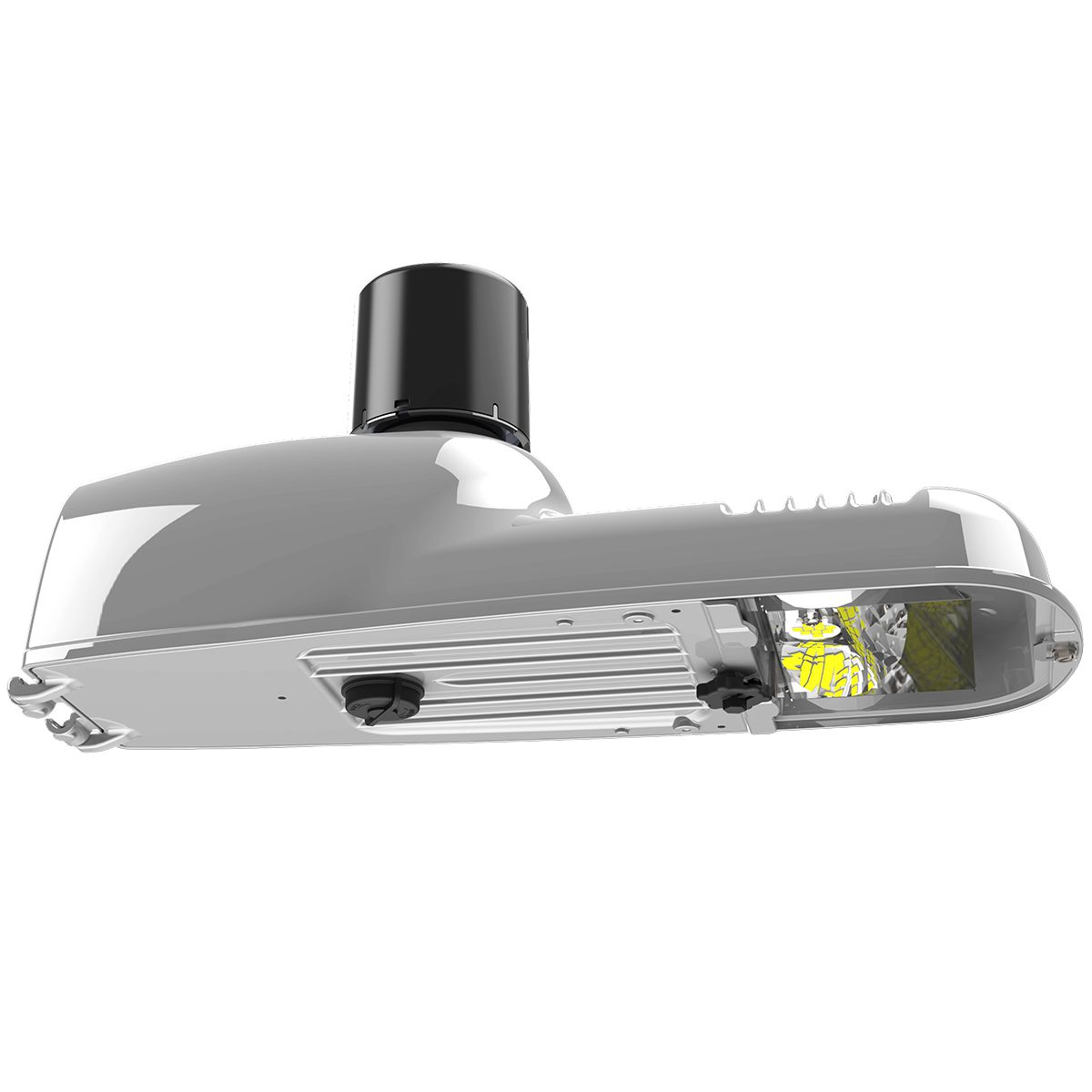

Evolve® ERLC

The Evolve ERLC series Cobra Head is a 30% lighter compact fixture with advanced reflective optics optimized for residential and local roadway solutions.
BABA-icon Assembled_in_USA_Icon Wet_Rated_Icon TAA_Compliant_Icon IP_Rated_Icon IK_Rated_Icon IDA_-_Dark_Skies_Icon DLC_Standard_Icon cULus_Icon Controls_Enabled_Icon BAA_Compliant_Icon

Features & Benefits

  • Advanced Reflective Optic design optimizes application efficiency, minimizes glare and provides superior cut off with significantly less wasted light
  • Excellent light control which aims light directly on primary target, optimizing watts
  • Flat, tempered glass lens is less prone to dirt accumulation resulting in 1% LDD per year over 10 years
  • Controls ready design: All Cobraheads have a standard ANSI 7 pin PE Receptacle
  • Designed and manufactured in the USA
  • Offerings to 7,000 Lumens with up to 143 LPW
  • BABA compliant configurations available. Please contact factory to verify if specific configuration is compliant
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Voltage Offering
120-277 V
Lumen Range
1,760 - 7,000lm
CCT Offering
2700 K, 3000 K, 4000 K, 5000 K
CRI Offering
70
Mounting Options
Adjustable for 1.25 to 2.0 in. nominal mounting pipe, 4 Bolt Slipfitter (option)
Wattage Range
15 - 56 W
Efficacy Range
110 - 143 LPW
Color Offering
Gray, Black, Dark Bronze, White, RAL and custom colors available
Optics & Distributions
Type II Narrow, Type II/Type III, Type III, Type V
Controls & Sensors
0-10V Dimming, 7-pin PE Receptacle, LightGrid+™ Compatible, LL PE available (option)
Certifications
UL, cUL, IDA, DLC Standard, FCC
Ratings
Wet, BAA, RoHS, BABA, TAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L93 @ 60,000 hours
Warranty
5 year limited warranty, 10 year optional warranty

Product Documents

Custom Engineered Reflective Optic Technology

Optimizes application efficiency, minimizes driver glare, and 'shapes' the light to put the light where it is needed.

Designed and Assembled in The USA

The entire Current Roadway street light portfolio is designed and assembled by our industry leading team in our state of the art manufacturing center in Hendersonville, NC.

LightGrid+™ Compatible

Current's Cobra Head portfolio is compatible with LightGrid+™. LightGrid+™ allows municipalities and transportation departments the ability to remotely monitor energy consumption, detect failures, dim fixtures remotely and achieve real time energy metering.

Application Photos

Related Products

The Evolve® ERL1 Series Cobra Head with advanced reflective optics is optimized for customers seeking residential, local, collector and major roadway solutions.
View Product
The Evolve® ERL2 Series Cobra Head with advanced reflective optics is optimized for customers seeking local, collector and major roadway solutions.
View Product
LightGrid™ Mesh Gateway (ELWG) in conjunction with our mesh system enables remote monitoring and control of fixtures through a web enabled Central Management System.
View Product
LightGrid™ Mesh Node (ELWN) reside on top of an ANSI socket light fixture operating in a mesh network, communicating via RF with gateway and via cell to the CMS.
View Product
LightGrid™ Internal Mesh Node (ELWN) operates in a mesh network and is designed for Post Tops and other luminaires where no external ANSI socket is available.
View Product
